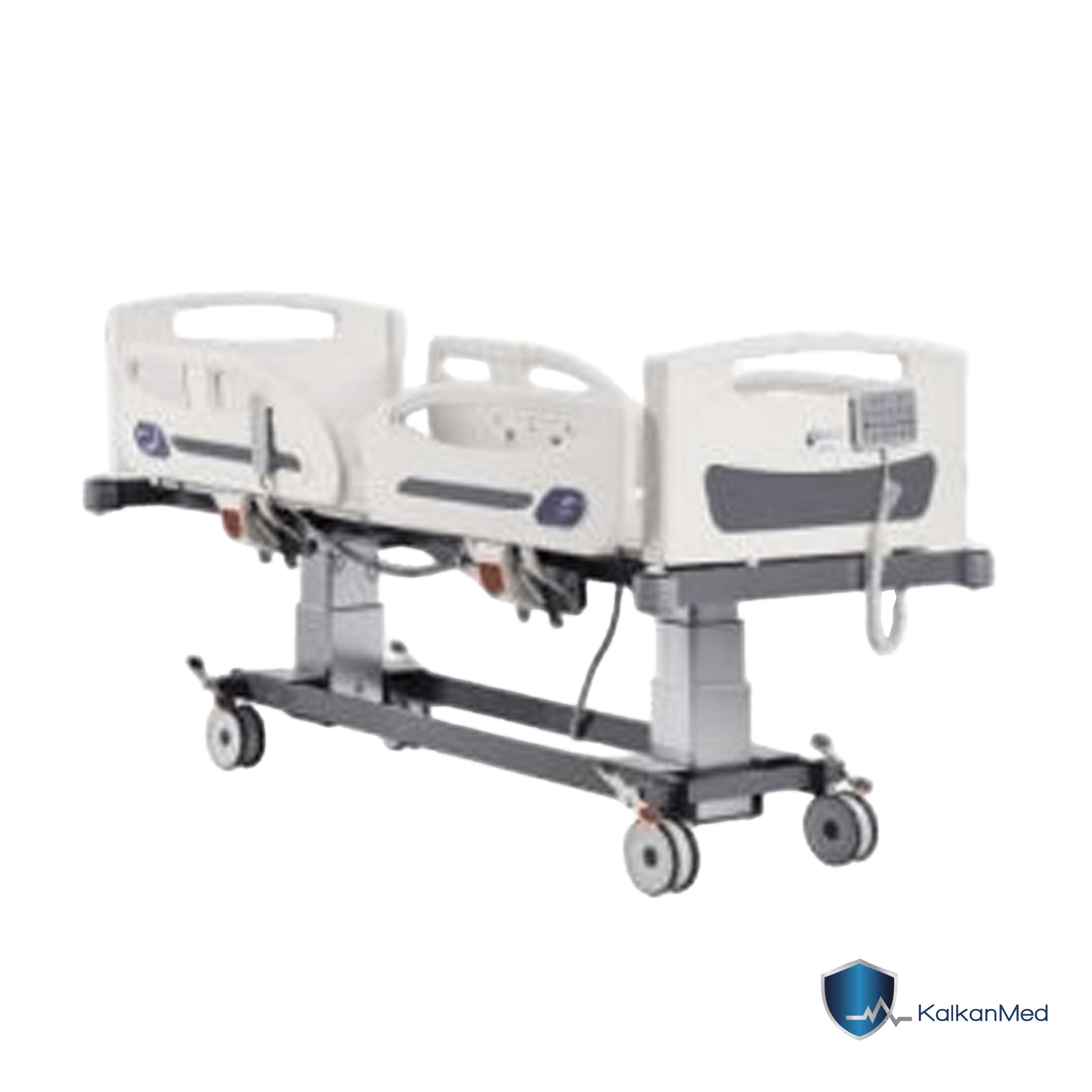

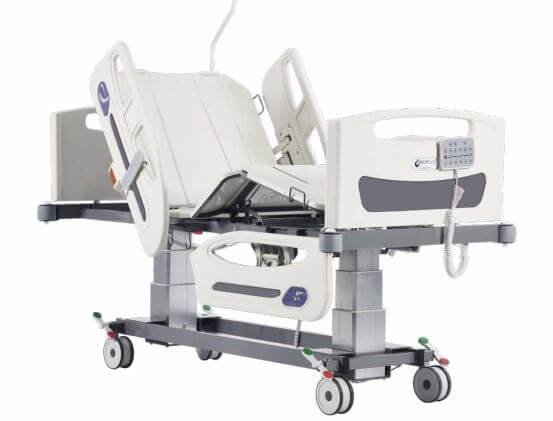

PLUS 5005

COLUMN MOTOR ICU BED

• Height, head and leg movement with electrical motors

• Trendelenburg, reverse trendelenburg fowler and vascular positions

• Automatically sliding backrest and legrest

• Hand control

• 360° rotating cross brake system

• Hygenic design ABS (PP) lockable and hideable siderails.

• ABS matress platform

• Electrostatically powder painted metal frame .

• Height adjustable IV Pole

• Accessories place on four corners

• Angle indicato

• Cable apparatus

Technical Specifications

Width : 103 cm
Length : 202 cm
Back Segment Length : 85 cm
Back Segment Angle : 0-70°
Min-Max : 54 - 97,5 cm
Foot Segment Angle : 21°
Trendelenburg : 21°
Safe Maximum Load : 250 kg
Net Weight : 185 kg
Gross Weight : 225 kg
Shipment Dimension : 113x220x90 cm
Material Car : 66x112x99 cm


Standard Accessories

Infusion Pole

Mattress

Grip Arm

Knee Support

Heel Support

Waste Container

Anesthesia Frame

Material Car

Central Locking

Battery

Manual CPR
