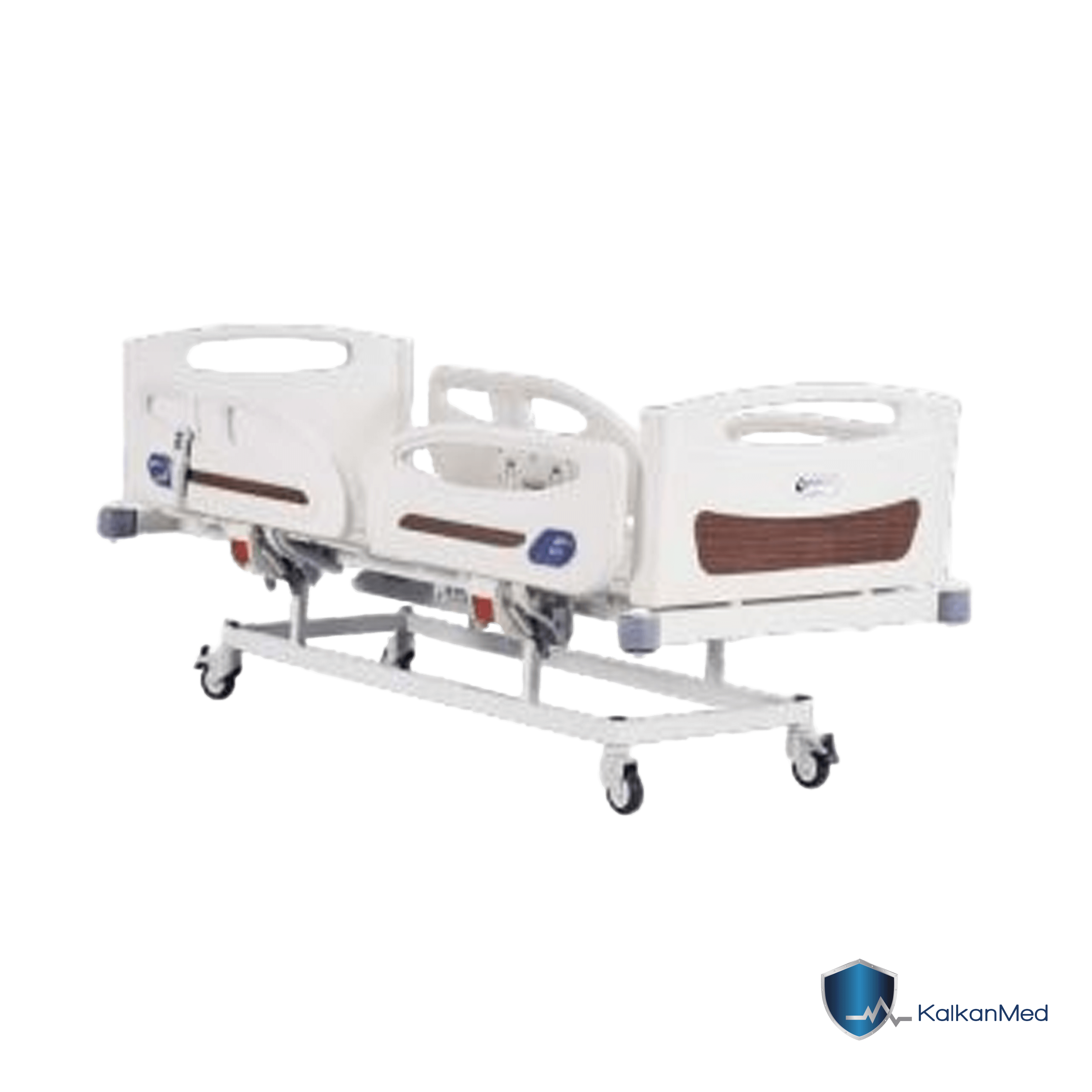

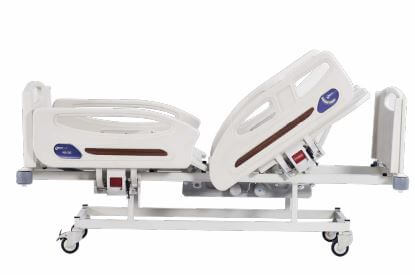

PLUS 2002

TWO MOTORS PATIENT BED

• Headrest and legrest movement with electrical motors

• Automatically sliding system backrest and legrest

• Hand control

• 360° rotating cross brake system

• Hygenical design plastic lockable and hideable siderails .

• Hygenical design plastic easily removable head and foot boards

• ABS matress platform

• Electrostatically powder painted metal frame

• Heigh adjustable IV pole

• Plastic bumpers

• Accessories place on four corners.

• Angle indicator

• Cable apparatus

Technical Specifications

Width : 103 cm
Length : 202 cm
Back Segment Length : 85 cm
Back Segment Angle : 0-70°
Min-Max : 54 - 97,5 cm
Foot Segment Angle : 21°
Trendelenburg : 21°
Safe Maximum Load : 250 kg
Net Weight : 185 kg
Gross Weight : 225 kg
Shipment Dimension : 113x220x90 cm
Material Car : 66x112x99 cm


Standard Accessories

Infusion Pole

Mattress

Grip Arm

Knee Support

Heel Support

Waste Container

Anesthesia Frame

Material Car

Central Locking

Battery

Manual CPR
